Waveshare Industrial 8-Channel ESP32-S3 WiFi Relay Module, Onboard Isolated CAN Interface, Built-in Xtensa 32-bit LX7 Dual-core Processor, Up to 240MHz, with Multiple Isolation Protection Circuits
$63.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.aytugplastik.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$63.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.aytugplastik.com
Free 30-day returns Details
Product details
| Management number | 216115480 | Release Date | 2026/04/19 | List Price | $25.60 | Model Number | 216115480 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

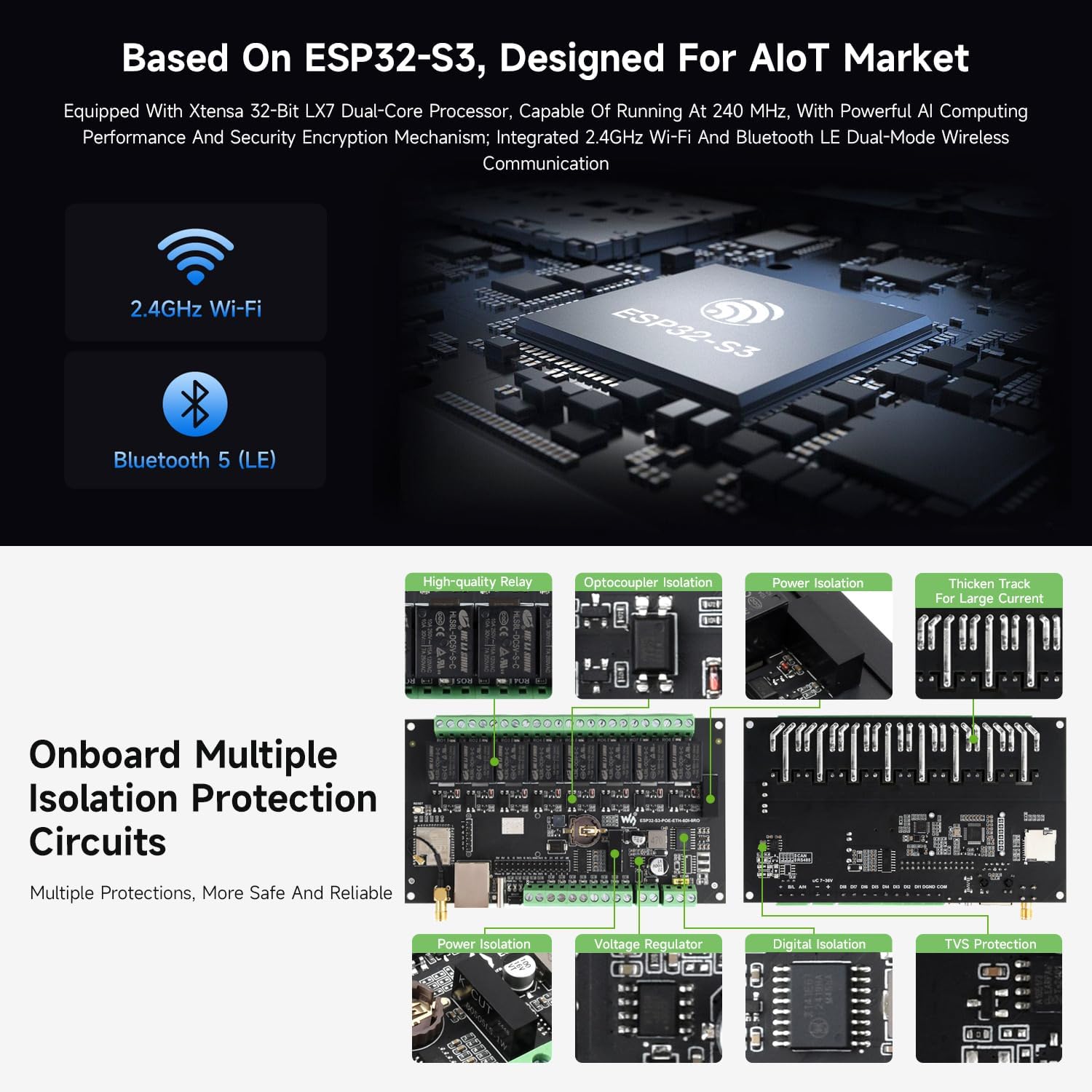

- ESP32-S3 Microcontroller: Powered by the ESP32-S3 microcontroller with a dual-core Xtensa 32-bit LX7 processor, running at up to 240 MHz for optimal performance.
- Wireless Communication: Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode support, ensuring excellent RF performance for seamless connectivity.
- Relay and Digital Input: High-quality relay with a contact rating of ≤10A 250V AC / 30V DC, supporting both passive and active digital inputs with bi-directional optocoupler isolation and digital input linkage control.
- CAN Interface & Connectivity: Equipped with an isolated CAN interface for communication with CAN devices, plus a pin header for connecting to other external devices. It also includes an optional PoE version with built-in PoE capability for power over Ethernet.
- Power, Monitoring, and Installation: Onboard USB Type-C for power, debugging, and firmware downloading, with a wide voltage input (7~36V). Additional features include an RTC chip, W5500 Ethernet chip, TF card slot, built-in buzzer, RGB LED, and CAN TX/RX indicators. The device comes in a rail-mounted ABS case for easy installation.
- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
| Brand | waveshare |
|---|---|
| Platform | Custom |

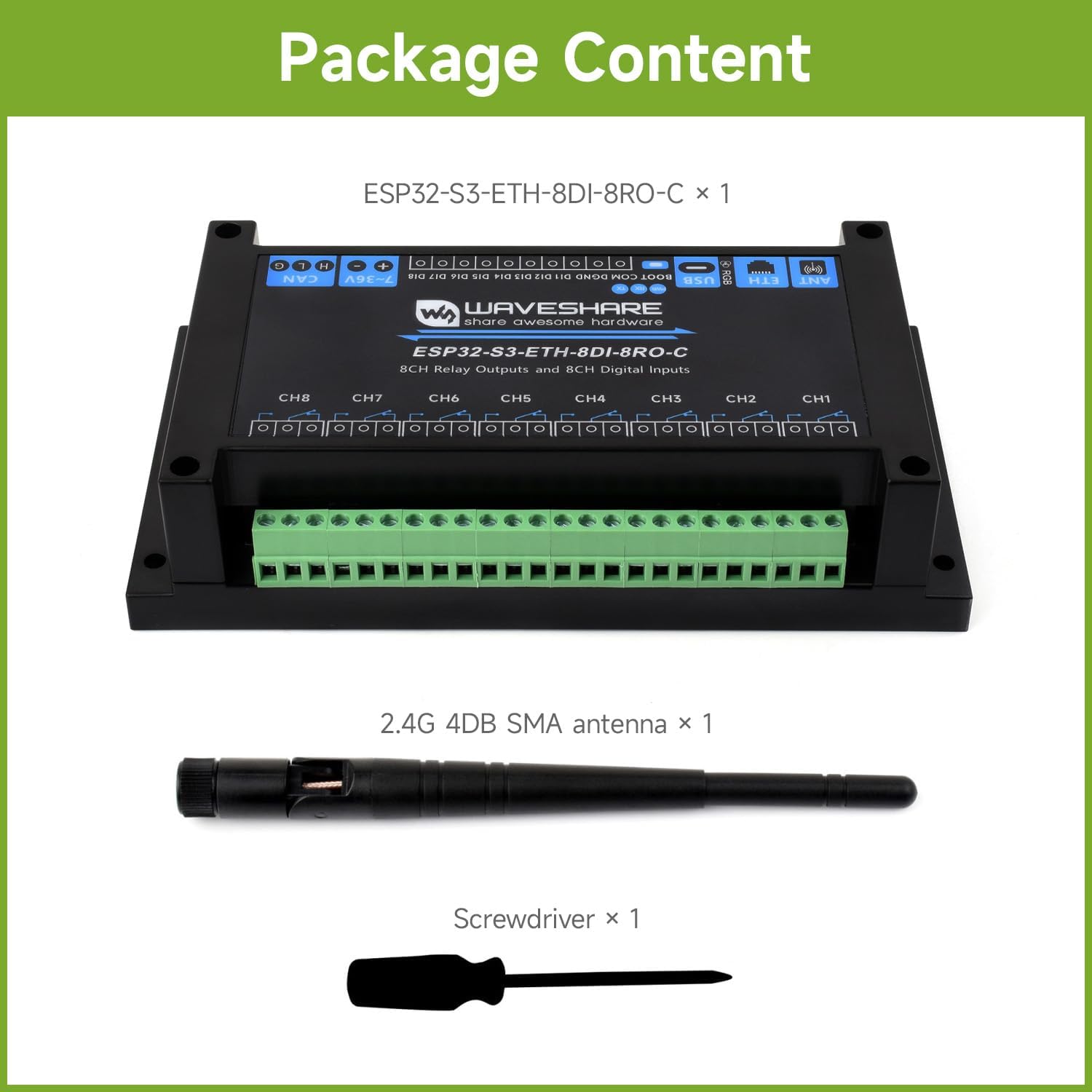

| Model Name | ESP32-S3-ETH-8DI-8RO-C |
| Chipset Type | ESP32-S3 |
| Manufacturer | Waveshare |
| Model Number | ESP32-S3-ETH-8DI-8RO |
| BuiltIn Media | ESP32-S3-ETH-8DI-8RO-C |
| Number of Ports | 2 |
| Compatible Devices | Personal Computer, Laptop, Desktop, Server |
| Warranty Description | 1 year |
| Compatible Processors | ESP32-S3 |
| RAM Memory Technology | DDR4 |
| Graphics Card Interface | Integrated |
| Number of Ethernet Ports | 1 |
| Main Power Connector Type | USB Type-C |
